Custom (Non-Standard) Round Bayonet Connector Hirose TT10A-10P-12S(73) (Plug, 12 Pins) and Mating Receptacle HRS HR10-10R-12SA(73) (12 Contacts) for Industrial Cameras
Tailored Solutions for Machine Vision Tasks: Why Standard Solutions Sometimes Fall Short
In the world of industrial automation and machine vision, every component detail is critical. When it comes to transmitting high-resolution video signals, control commands, and electrical power to a camera, connection reliability becomes a decisive factor for the success of an entire project. The Japanese manufacturer Hirose Electric Co. has long established itself as a benchmark in the production of miniature circular connectors, and its HR10 series has become the de facto standard for interfacing industrial cameras.
However, what happens when an off-the-shelf solution isn't suitable for specific operating conditions? This is precisely where customization comes into play. Today, we will examine in detail a non-standard configuration based on the iconic Hirose connectors — the combination of the Hirose TT10A-10P-12S(73) plug and its mating receptacle, the HRS HR10-10R-12SA(73) . This pair represents a specialized round bayonet connector, engineered to address unique challenges in industrial machine vision where standard solutions cannot guarantee the required level of reliability and functionality.
Evolution of a Standard: From HR10 to Specialized Modifications
Before delving into the details of this custom solution, it's important to understand the origins of the components. The base HR10 series from Hirose is a family of miniature circular bayonet connectors featuring a push-pull locking mechanism. These connectors have gained widespread adoption due to their compactness, reliability, and ease of use. Their design allows for quick and secure cable mating without the risk of accidental disconnection, a feature particularly valuable in the confined spaces within industrial camera housings and controllers.
The mating part in our kit — the HRS HR10-10R-12SA(73) — is a classic receptacle from this series. According to the manufacturer's official specifications, it is a 12-contact, straight-type receptacle designed for soldering and through-hole (THT) mounting on a printed circuit board or panel mounting using a rear nut. The housing is made of zinc alloy with a nickel finish, ensuring high corrosion resistance, while the contacts feature gold plating for minimal contact resistance (max. 10 mΩ) and signal stability.
The nominal ratings of this receptacle are impressive for its compact size (housing diameter of only 11-12 mm): an operating current of up to 2A per contact, a voltage rating of 100V AC or 140V DC, and an operating temperature range extending from -50°C to +125°C. The manufacturer specifies a mating durability of 1000 cycles, an excellent indicator for equipment operating under conditions of frequent reconfiguration.
However, a key feature is the suffix (73) in the part number. For Hirose, this designation often indicates a specific modification or version of the product, frequently corresponding to the strictest requirements for materials and plating (in this case, the gold plating of contacts, as confirmed by documentation).

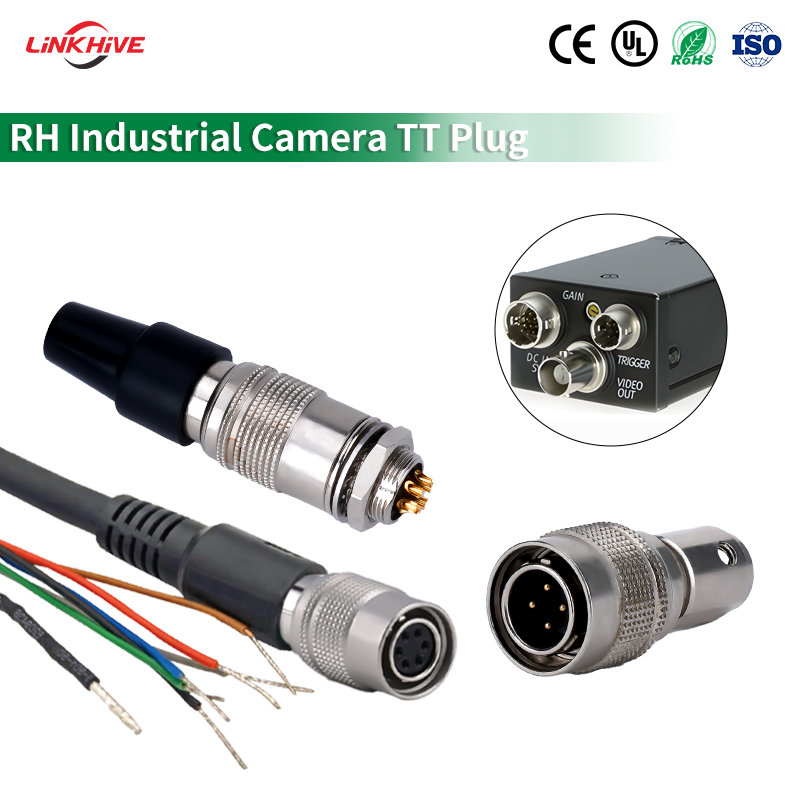

The Plug with Special Capabilities: Analyzing the Hirose TT10A-10P-12S(73)
If the HR10-10R-12SA(73) receptacle is a relatively standard component, the Hirose TT10A-10P-12S(73) plug represents a more specialized product. The "TT" prefix in the model number hints at design features tailored for specific applications — possibly enhanced locking mechanisms or a special housing shape intended for operation in high-vibration environments.
In the context of industrial cameras, where the connector is constantly subjected to moving cables and bending stresses, selecting the correct plug is just as important as choosing the receptacle. The custom nature of this assembly implies that the standard HR10A cable plug has been modified or combined with elements from the TT series to achieve one or more of the following objectives:
Enhanced Shielding: Industrial environments are rife with electromagnetic interference from motors, inverters, and power cables. The specialized design of the TT10A may provide 360-degree shielding of the connection, which is critical for maintaining video signal integrity.
Increased Mechanical Strength: A reinforced cable clamp and a more robust housing protect the internal contacts from strain and vibration, preventing breakage of thin wires.
Compatibility with Special Cables: As noted by manufacturers of cable assemblies, transmitting high-quality video signals often requires specialized cables, for example, ones incorporating multiple coaxial conductors within a common shield. The TT10A-10P-12S(73) plug may feature an internal geometry optimized for preparing and soldering such complex cables.
The Need for Customization: Analyzing Requirements
Using a "custom plug + standardized receptacle" combination opens up significant possibilities for integrators and developers of machine vision systems.
1. Extending Line Lengths Without Quality Loss:
Standard solutions for video signal transmission have distance limitations. However, the use of high-quality Hirose components, combined with specialized contact wiring and the integration of coaxial pairs within the cable, can achieve stable signal transmission over distances of 25 meters or more. In our custom 12-contact configuration, the pins can be allocated as follows: several lines dedicated to camera power, several for control signals (trigger, settings), and the remaining contacts grouped to form coaxial channels for video data transmission (e.g., Camera Link or GigE Vision using differential pairs).
2. Resistance to Harsh Environments:
While the HR10 series is not fully waterproof (unlike specialized series), the use of high-grade materials — nickel-plated zinc alloy and gold-plated contacts — provides substantial resistance to corrosion, moisture, oils, and dust. The custom TT10A plug can be further equipped with sealing gaskets at the cable entry point, preventing contaminants from entering the connector interface.
3. Termination Versatility:
The HR10-10R-12SA(73) receptacle is designed for PCB soldering or panel mounting. This makes it an ideal solution for embedding directly into the camera body or its protective enclosure. The custom plug, in turn, allows for connecting various cable types and routing them to other equipment — be it a frame grabber in a computer, a junction box with BNC connectors, or an industrial controller. This transforms our kit into a versatile adapter, bridging the world of industrial cameras with the world of data processing.
Technical Details: What Lies Behind the Part Numbers
Let's break down in detail what these components represent from a technical standpoint, based on available specifications.
Receptacle HRS HR10-10R-12SA(73)
Type: Receptacle for panel or printed circuit board mounting.
Number of Contacts: 12 (female).
Locking System: Push-pull. This means the connector is simply pushed in until it clicks for mating, and the outer sleeve is pulled for unmating. This ensures speed and reliability, preventing accidental disconnection.
Housing Material: Zinc alloy with nickel plating. Provides mechanical strength and corrosion protection.
Contact Material: Copper/bronze with gold plating. Gold prevents contact oxidation and guarantees stable resistance throughout the service life.
Electrical Parameters:
Rated Current: 2 A.
Rated Voltage: 100 V AC / 140 V DC.
Contact Resistance: 10 mΩ maximum.
Mechanical Parameters:
Operating Temperature Range: -50°C to +125°C.
Mating Cycles: 1000.
Mounting: THT (for PCB) or using rear nut for panel fixation.
Compliance: RoHS.
Plug Hirose TT10A-10P-12S(73) (Custom)
While the exact specifications of this model are custom and may vary, we can make reasonable assumptions based on the part number structure and practical needs.

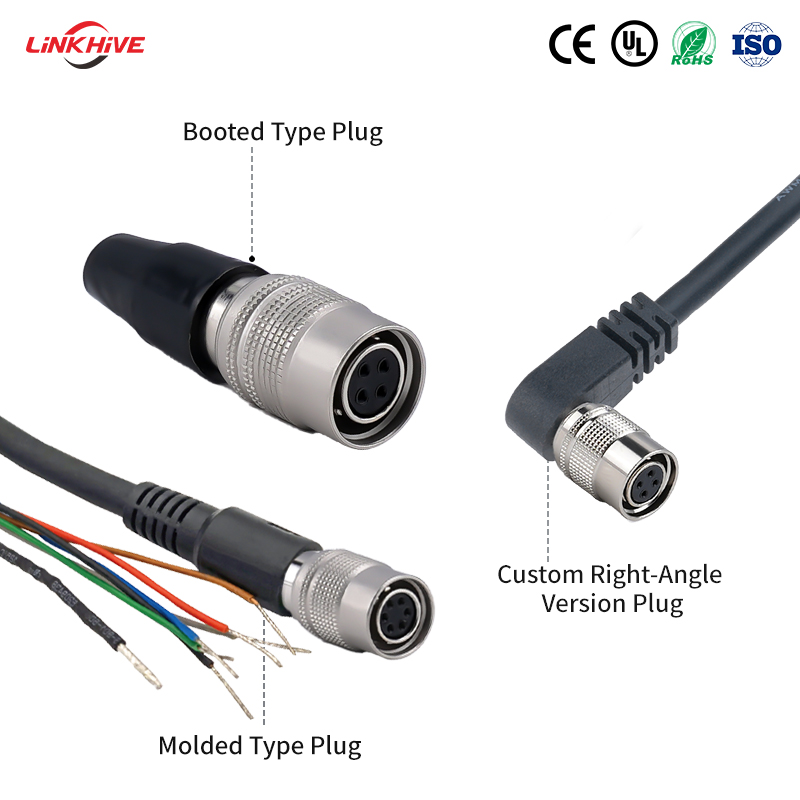

Type: Cable plug, intended for terminating a cable.
Number of Contacts: 12 (male), corresponding to the contact arrangement in the receptacle.
Assumed Features:
Reinforced cable strain relief to prevent wire pull-out.
Capability to handle multi-conductor composite cables, including coaxial lines.
Enhanced electromagnetic shielding (potentially 360-degree).
Application: Connection to the cable running to the power source and image acquisition device (computer, controller).
Application in Industrial Cameras: Solving Real-World Problems
Why 12 contacts specifically? A modern industrial camera is a complex device requiring multiple circuit connections. A typical signal distribution in a 12-pin Hirose connector for a camera might look like this:
Power (+) — 1-2 contacts.
Power (GND) — 1-2 contacts (sometimes separate for analog and digital sections).
Differential pairs for video data — e.g., 4 contacts for two pairs (using LVDS standard).
Clock signals — 2 contacts (differential pair).
Control signals — 2-3 contacts (trigger, exposure, mode selection).
Serial interface (UART) — 2 contacts (TX/RX) for camera configuration.
The custom Hirose TT10A-10P-12S(73) plug allows all these connections to be organized within a single, robust, and reliable housing. This eliminates the need for multiple connectors on the camera (one for power, another for data), saving space and enhancing overall system reliability.
Thanks to the high-quality materials and gold-plated contacts, such a custom assembly ensures:
High-Speed Data Transmission Stability: Minimal signal loss and distortion.
Reliable Power Delivery: Low contact resistance prevents heating and voltage drop when carrying up to 2A per line.
Longevity: A durability of 1000 mating cycles translates to years of trouble-free operation, even under conditions of frequent equipment changeovers.
Market Context and Alternatives
It's worth noting that the market offers numerous off-the-shelf cable assemblies for industrial cameras utilizing HR10A connectors. These assemblies typically consist of a cable with an HR10A connector on one end and, for example, a BNC or D-SUB connector on the other. They serve as excellent standardized solutions for the majority of tasks.
However, our custom combination (TT10A-10P-12S(73) + HR10-10R-12SA(73)) goes a step further. It is intended for situations where standard solutions are insufficient:
Unique Cable Routing Conditions: Requires a cable with exceptional flexibility, resistance to oils, or tolerance to extreme temperatures.
Specific Pinouts: Necessitates a non-standard contact assignment (e.g., PoE power or a proprietary data transfer protocol).
Integration into an Existing System: Demands precise connector geometry matching for embedding into an existing housing or bracket.
Conclusion: An Investment in Reliability
A custom round bayonet connector based on Hirose components is more than just a way to connect wires. It is an engineering solution crafted with the specifics of a particular application in mind. Utilizing the HRS HR10-10R-12SA(73) receptacle, with its proven technical characteristics, gold contacts, and reliable push-pull mechanism, guarantees that the base part of the system (the camera) receives an interface of the highest quality.
Paired with the specially selected or modified Hirose TT10A-10P-12S(73) plug, this forms a connection capable of performing where ordinary connectors fail: on high-vibration conveyor lines, in dusty workshops, in systems with high camera switching frequencies, or when signals need to be transmitted over distances exceeding the standard 10-15 meters.
By choosing such a custom solution, the developer gains not just a component, but a guarantee of stable operation for the machine vision system — where frame loss due to connection interference or mechanical damage to the connector is unacceptable. This is a choice for predictability, durability, and the highest quality of data transmission, achievable only with Hirose-level products, adapted to the unique requirements of the customer.
