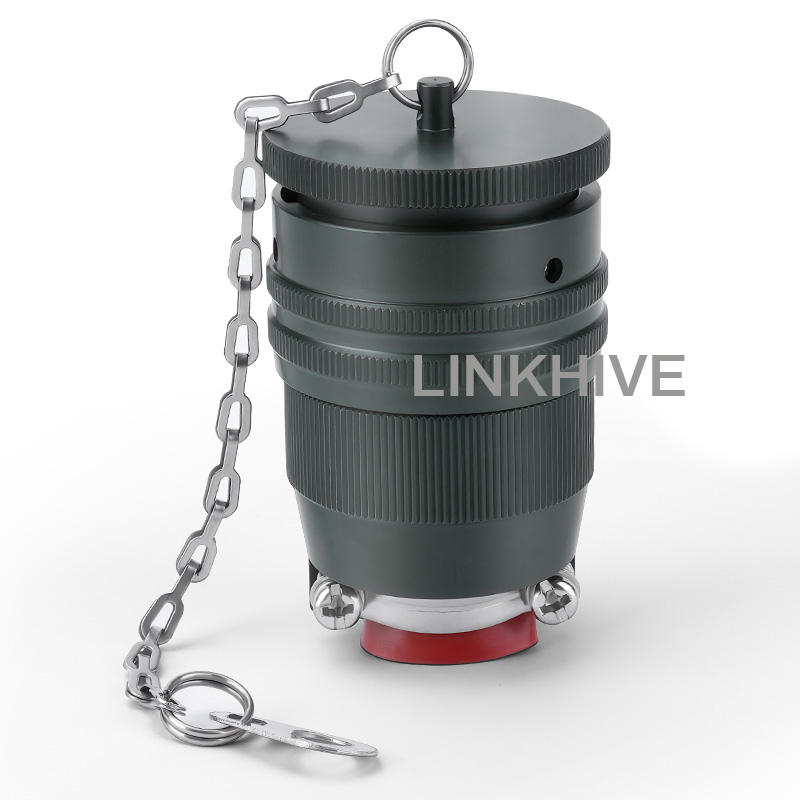

Mil spec connectors are special connectors designed for military, aerospace, defense communications, and other high-reliability fields. The manufacturing and testing of these connectors need to meet strict military standards (MIL standards) to ensure that they can operate stably under extreme environmental conditions.
MIL standards are developed by the U.S. Department of Defense (DoD) and cover the design, performance, materials, test methods, and other aspects of military connectors. This article will explore the MIL standards for mil spec connectors in depth, analyzing their specific classifications, applicable environments, and their key requirements.
Connectors: What are MIL standards?
Military Standards (MIL-STD or MIL-SPEC) are a series of technical specifications developed by the U.S. military to ensure the interoperability, reliability, and durability of military equipment worldwide. MIL standards are not only applicable to weapons and equipment, but also cover communication systems, electronic equipment, mechanical components, and other fields. For mil spec connectors, MIL standards define their design parameters, electrical characteristics, mechanical properties, and environmental adaptability requirements.
The MIL standard for military connectors mainly covers the following aspects:
● Structural and dimensional requirements: Ensure that the mil spec connector has a unified appearance and interface standard to ensure that military connectors produced by different manufacturers can be used interchangeably.
● Material and manufacturing requirements: Including regulations on corrosion resistance, waterproofness, dust resistance, impact resistance, etc., to ensure that the mil spec connector can operate stably and long-term in harsh environments.
● Electrical performance requirements: Cover electrical parameters such as resistance, insulation, and electromagnetic compatibility to ensure stable transmission of signals and power.
● Mechanical performance requirements: The number of plug-in and unplugging times, mechanical strength, and vibration resistance of the military connector are specified to ensure its long-term durability.
● Environmental adaptability requirements: Cover temperature range, humidity, salt spray test, chemical resistance, etc., to ensure that the mil spec connector can adapt to different battlefield environments.
What is the MIL standard for connectors?

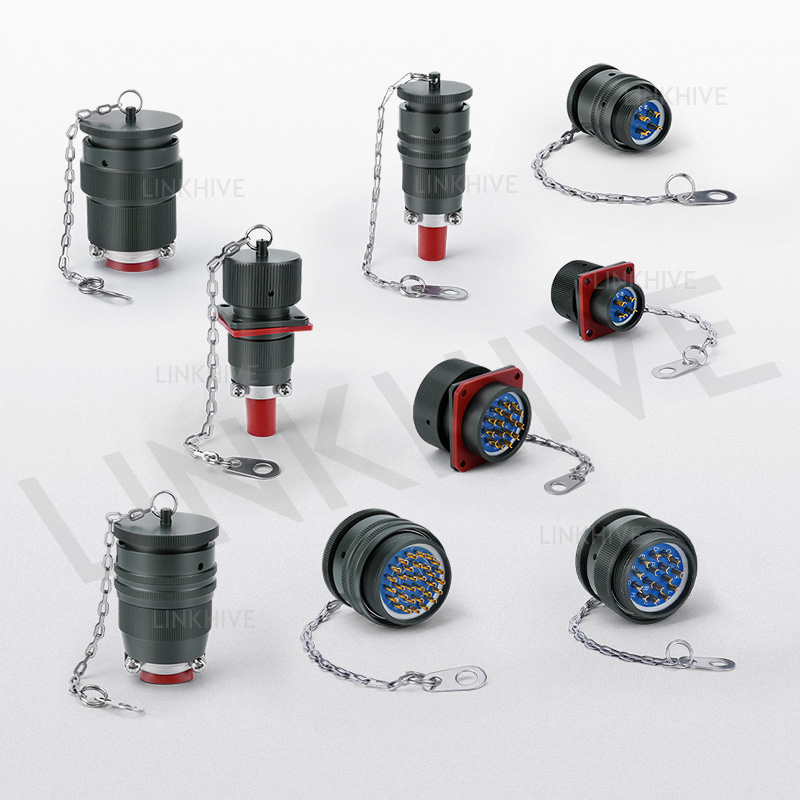

The MIL standard for mil spec connectors is the key to ensuring their high reliability, high durability, and high performance. Four common military connector standards are: MIL-DTL-38999, MIL-DTL-26482, MIL-DTL-5015, and MIL-DTL-26500.
MIL-DTL-38999 military connector
MIL-DTL-38999 is one of the most widely used mil spec connector standards. The MIL-DTL-38999 standard is a detailed requirement for circular high-density connectors, which are widely used in military, aerospace and other fields requiring high reliability. The MIL-DTL-38999 military connector can withstand extreme temperatures, humidity, vibration and shock, and is suitable for the transmission of high voltage, high current and high frequency signals. The MIL-DTL-38999 standard also specifies the electrical performance indicators of the military connector, such as the number of plug-in and unplug times, contact impedance, insulation resistance, and detailed requirements for the material, structure and protective layer of the contact point. The features of the MIL-DTL-38999 mil spec connector are as follows:
● High-density contact design: The MIL-DTL-38999 mil spec connector supports high-density pin arrangement and can transmit multiple signals or power in a compact space.
● Excellent environmental adaptability: It has vibration resistance, waterproof (IP67 or higher), corrosion resistance and high temperature resistance, and can be used in extreme conditions.
● A variety of housing materials: Usually made of aluminum alloy, stainless steel or titanium alloy, it has excellent durability and weight optimization characteristics.
● Quick connection/disconnection mechanism: Bayonet, threaded or push-pull locking mechanism is used to ensure quick and safe connection and disconnection in battlefield or flight environments.
MIL-DTL-38999 military connector main applications
● Military aviation equipment (fighters, drones, helicopters)
● Missile systems
● Battlefield communication systems
● Armored vehicles and ground control equipment
MIL-DTL-26482 military connector
The MIL-DTL-26482 mil spec connector is another common military standard. The MIL-DTL-26482 standard is mainly applicable to small circular connectors and is a standard developed by the US military to meet high-demand applications. The MIL-DTL-26482 military connector is commonly used in small and medium-sized devices, especially in environments with limited space and high reliability requirements. This mil spec connector has high mechanical strength, can withstand certain shocks and vibrations, and has strong corrosion resistance. The MIL-DTL-26482 military connector is widely used in aerospace, military vehicles, ships, communications equipment and other fields, and is suitable for connection requirements with strong protection and small size. The features of the MIL-DTL-38999 mil spec connector are as follows:
● Compact design: Compared with MIL-DTL-38999, the MIL-DTL-26482 military connector is smaller in size and suitable for space-constrained equipment.
● Rugged and durable: It has high mechanical strength and can resist shock and vibration.
● Quick connection/disconnection: It adopts a bayonet locking mechanism for easy and quick installation and removal.
● Strong environmental resistance: It can operate normally under harsh conditions such as high humidity, salt spray, and oil pollution.
Main applications of MIL-DTL-26482 military connector
● Military vehicle electrical systems
● Portable battlefield communication equipment
● Military power distribution systems
● Avionics equipment

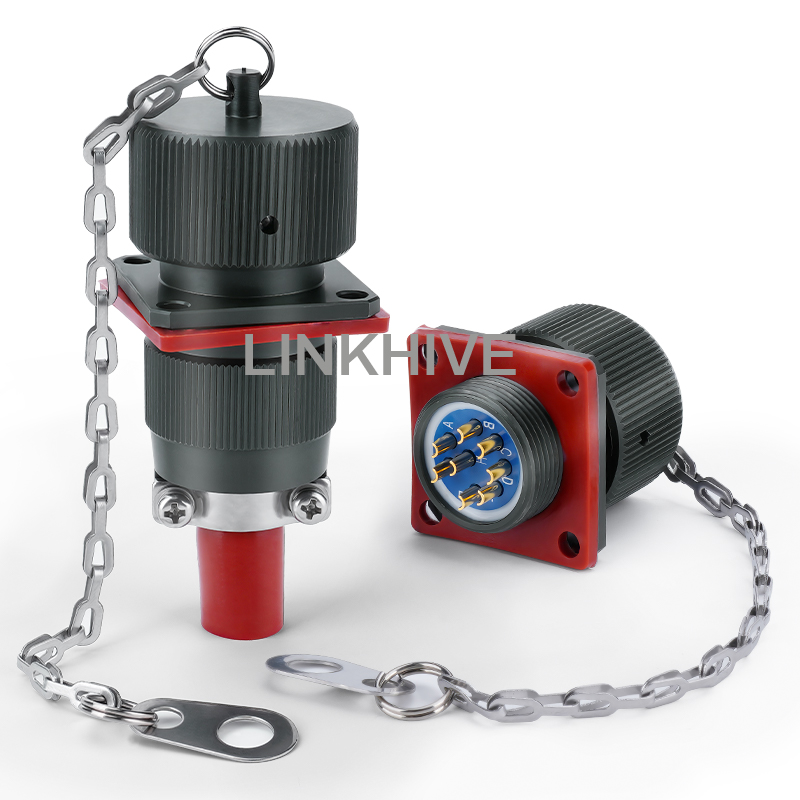

MIL-DTL-5015 military connector
The MIL-DTL-5015 connector is an earlier military connector standard. The MIL-DTL-5015 standard specifies the technical requirements for circular military connectors and is widely used in power transmission and signal transmission connection occasions. Compared with other MIL standards, MIL-DTL-5015 mil spec connector is more common in power systems and heavy equipment, and is suitable for high current and high power transmission applications.
MIL-DTL-5015 mil spec connector has extremely high anti-interference ability, can effectively prevent electromagnetic interference (EMI) and radio frequency interference (RFI), and can maintain stable operation in high voltage and high current environments. It is often used in military equipment, ships, vehicles, power systems and other fields. The characteristics of MIL-DTL-5015 mil spec connector are as follows:
● High power transmission capability: MIL-DTL-5015 mil spec connector is suitable for high current and high power applications, such as military generators, motor control systems, etc.
● Sturdy metal shell: usually made of aluminum alloy or stainless steel, with strong impact resistance and corrosion resistance.
● Threaded connection mechanism: adopts thread locking method to ensure that it will not loosen in severe vibration environment.
● Environmental sealing: equipped with rubber sealing ring, it can prevent external contaminants such as water, oil, dust and so on from entering the interior of mil spec connector.
MIL-DTL-5015 military connector main applications
● Military vehicle power systems
● Heavy military machinery and equipment
● Military power generation and distribution systems
● Ground radar stations
MIL-DTL-26500 military connector
The MIL-DTL-26500 standard applies to the technical requirements of electrical connectors, especially for applications with strict requirements for high power, high current and high frequency signal transmission. This standard is mainly used in high-end electronic systems such as spacecraft, satellite systems, radar equipment, etc. The design of the MIL-DTL-26500 mil spec connector needs to meet the characteristics of high reliability, corrosion resistance, and vibration resistance to ensure the long-term stability of the equipment in harsh environments.
This standard specifies the size, shape, electrical performance and mechanical properties of the mil spec connector, and especially emphasizes the stability and low loss of the connector in high-frequency signal transmission. The MIL-DTL-26500 mil spec connector is suitable for occasions where high-performance signal transmission is required under extreme environmental conditions. The features of the MIL-DTL-26500 mil spec connector are as follows:
● Lightweight design: Compared with MIL-DTL-38999, the MIL-DTL-26500 mil spec connector is lighter and suitable for applications in the aerospace field.
● Good shock resistance and impact resistance: Able to withstand the working requirements of aircraft in high G force and vibration environment.
● Multiple installation methods: Supports flange installation (Flange Mount), cable installation (Cable Mount) and other methods, suitable for different application requirements.
● Anti-EMI/RFI design: With strong electromagnetic shielding capabilities, it can operate stably in high electromagnetic interference environments.
Main applications of MIL-DTL-26500 military connector
● Avionics equipment
● Military aircraft (fighters, bombers, drones)
● Space exploration equipment
● Military satellite communication systems
How does the MIL standard affect the performance of the connector?
The MIL standard has a profound impact on the performance of the mil spec connector, and its main role is reflected in the following aspects:
● Improve reliability: The MIL standard ensures that the connector can withstand extreme environments, such as high temperature, low temperature, high humidity, severe vibration, etc., reduce the failure rate, and improve the success rate of the mission.
● Enhance interoperability: Connectors that meet the MIL standard have consistent interfaces and specifications worldwide, and can be seamlessly connected across devices and systems.
● Improve safety: Standardized materials and manufacturing processes ensure the electrical performance of the military connector is stable, avoiding safety hazards such as short circuits and signal attenuation.
● Optimize maintainability: Using standardized mil spec connectors can simplify equipment maintenance and replacement, reduce maintenance costs, and improve equipment availability.
