M12 female connectors are an important member of the industrial connector family and are widely used in various fields such as industrial automation, sensors, robot control, network equipment and mechanical connection. As a circular connector, M12 connectors have become the first choice in many demanding applications due to their reliability, durability and compact design. They can ensure efficient signal transmission and power connection between devices, especially in harsh working environments, where M12 connectors show excellent anti-interference and anti-corrosion capabilities.
In this article, we will introduce in detail what is an M12 female connector, its structural characteristics, working principle, application scenarios, and the differences in different pin configurations.

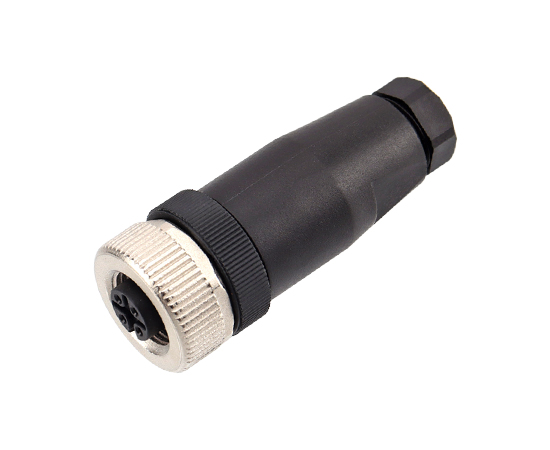

What is an M12 female connector?
M12 connectors are a circular industrial connector, and their name comes from the outer diameter of the connector (12 mm). This type of connector is widely used in automation equipment and industrial control systems, especially in sensors, actuators, robotic systems, network equipment and other fields. M12 connectors are adapted to harsh working environments due to their small and rugged design and can withstand vibration, moisture, dust, chemicals and other environmental factors.
The design of the M12 connector is standardized, and it ensures the stability and reliability of the connection through sealing and locking mechanisms. It usually has two main parts: a plug and a socket, where the m12 female connector usually refers to the side of the receiving plug, which is responsible for connecting the end of the device cable, and the pins of the receiving plug part are connected to the circuit inside the female connector through the contact points on the socket.
How does the m12 female connector work?

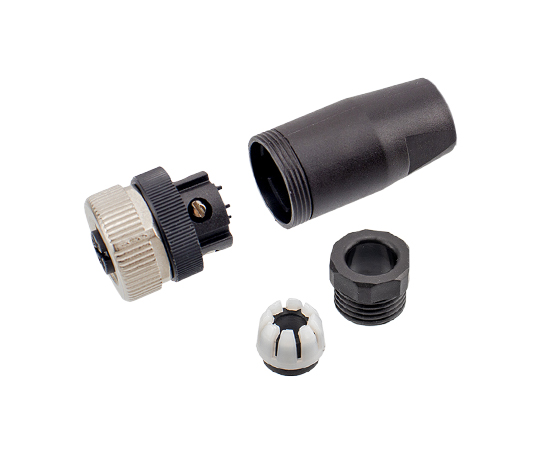

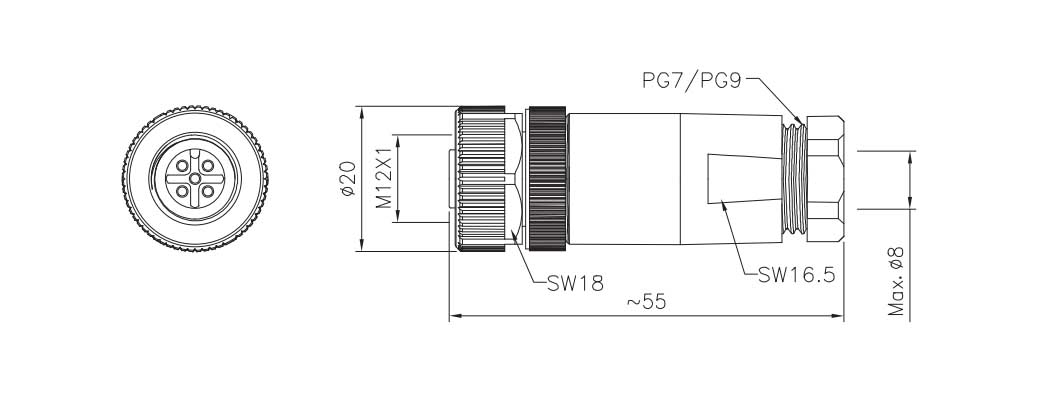

The main structure of the m12 female connector includes a shell, a contact surface, a sealing ring, and a locking mechanism. The shell is usually made of metal or engineering plastic materials to ensure that the connector has high strength and good corrosion resistance. The contact surface is made of metal materials, usually copper or gold-plated materials, to ensure efficient transmission of electrical signals.
● Shell: The shell part of the m12 female connector is mainly made of metal (such as brass, aluminum alloy, etc.) or high-strength engineering plastics. The shell design has a protective effect and can withstand external mechanical shock, vibration, pollutants and chemical substances.
● Contact surface: The contact surface of the connector usually includes multiple electrical contact points, which vary according to different pin configurations. The material of the contact point is generally made of highly conductive materials, such as gold-plated or silver-plated copper, to ensure stable transmission of signals or power.
● Sealing ring: The m12 female connector is usually equipped with a sealing ring to protect the internal circuit from moisture, dust, chemicals and other environmental factors. Its sealing performance enables it to operate stably in a humid or corrosive gas environment.
● Locking mechanism: In order to ensure a stable connection, the m12 female connector is equipped with a locking mechanism. This is usually achieved through a threaded or rotating locking design, so that the connection between the plug and the socket will not loosen during use, thereby ensuring the security of the connection.
How many pins does the m12 female connector have?

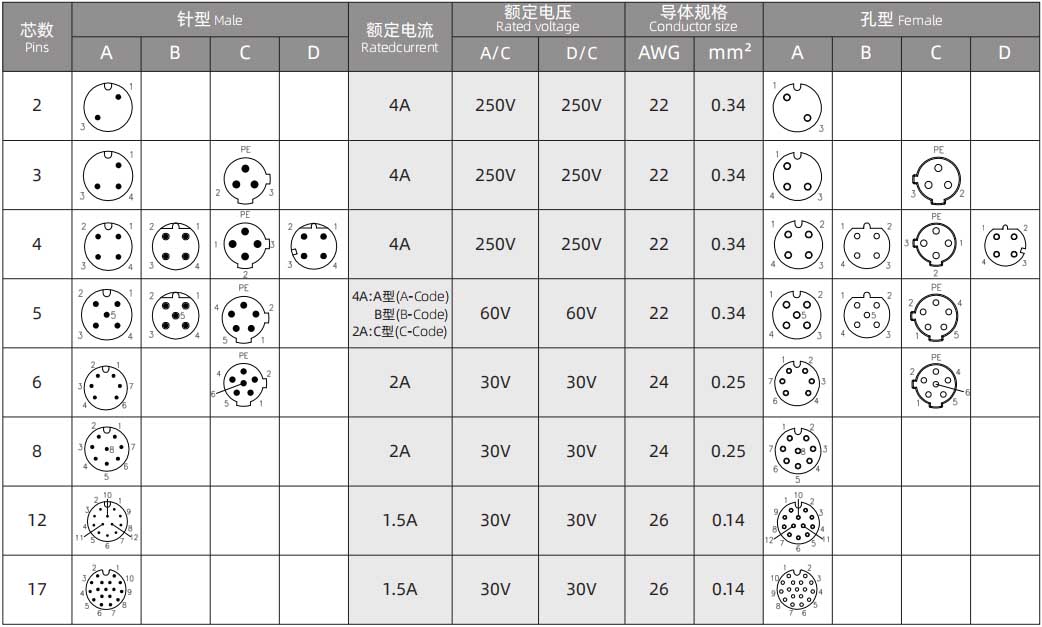

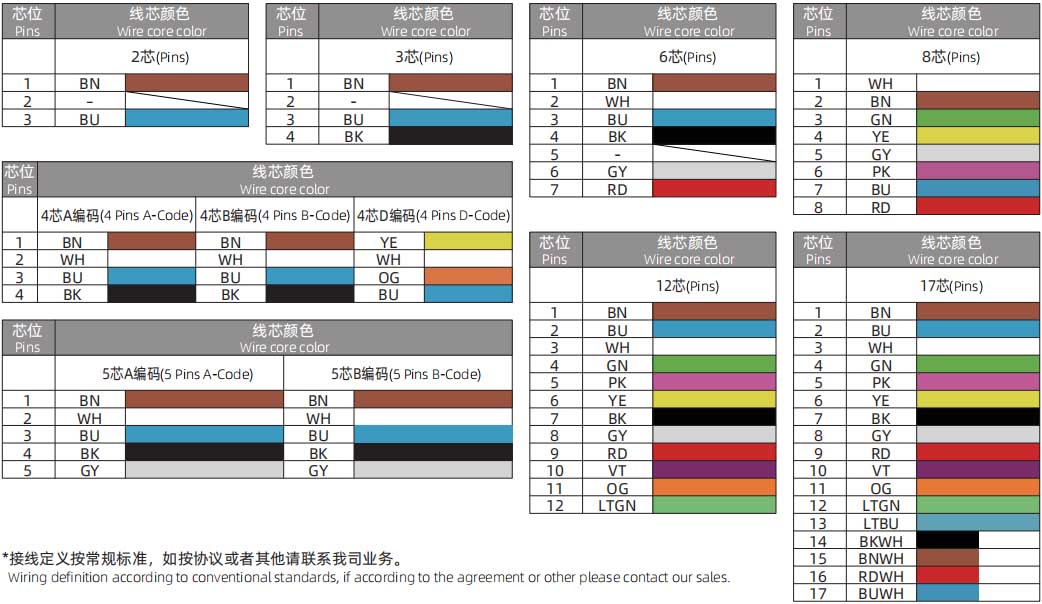

M12 connectors have multiple different pin configurations, and the number and arrangement of pins of the connector vary according to different application requirements. Common configurations include 3-pin, 4-pin, 5-pin, 8-pin and 12-pin, etc. Each pin configuration has its specific purpose and is suitable for different signal transmission and power requirements.
Common M12 Female Connector Pin Configurations
| Number of pins | Main purpose | Typical applications |
| 3-pin | Low power supply | Sensor, actuator, power supply connection |
| 4-pin | Power and signal transmission | Sensors, industrial control, Ethernet |
| 5-pin | Fieldbus communication | Profibus, CAN bus, IO-Link |
| 8-pin | High-speed data transmission | Industrial Ethernet (Ethernet), Profinet |
| 12-pin | Multi-function connection | Complex industrial automation systems, mixed signal control |
Here are some detailed descriptions of common M12 Female Connector pin configurations:
3-pin M12 Female Connector
The 3-pin M12 Female Connector is often used in applications with low to medium signal transmission. It can handle both power and signal lines, and is suitable for some low-power, low-current applications, such as small sensors or simple industrial equipment connections. The 3-pin connector is compact in design, which can effectively reduce space occupancy and is very suitable for space-limited application scenarios.
4-pin M12 Female Connector
The 4-pin M12 Female Connector is often used in applications that need to handle both power and signal. It is often used in sensors, actuators, and control systems in industrial automation, and can transmit power and signals at the same time, supporting simple two-way communication. The 4-pin configuration is widely used in connectors, especially in low-speed devices and sensor applications, and it has high transmission efficiency and reliability.
5-pin M12 Female Connector
The 5-pin M12 Female Connector is often used for higher-function device connections, especially in sensors, instruments, or control systems that require more input/output signals. 5-pin connectors can support power transmission and multiple signal line connections at the same time, and are suitable for high-speed data transmission and multi-function control devices. 5-pin M12 connectors are commonly found in industrial automation, control systems, and complex sensor networks.
8-pin M12 female connector
The 8-pin M12 female connector is often used for advanced applications that require multiple signal input/output. These applications may include complex network communications, image acquisition, sensor data exchange, etc. The 8-pin M12 connector can handle multiple data channels at the same time, support high-speed data transmission, and ensure efficient connection between devices. In industrial production, 8-pin connectors are often used for the connection of high-precision automation control systems, complex sensor networks, and multi-channel devices.
12-pin M12 female connector
The 12-pin M12 female connector is often used in extremely complex industrial systems, especially in high-bandwidth, low-latency multi-channel data transmission applications. The 12-pin configuration can handle multiple signal transmission channels and is often used in devices that require high data transmission rates and multi-function operations. The 12-pin connector can be applied to large-scale data acquisition, complex mechanical equipment control, precision industrial automation, and other occasions.
What are the uses of m12 female connector?
m12 female connector is widely used in many fields, especially in industrial automation, sensors, robot control, network equipment, power and signal transmission. Due to its good anti-interference, waterproof and dustproof ability and rugged design, M12 connector can maintain stable operation in multiple harsh environments.
● Industrial Automation: m12 female connector is one of the most common connectors in industrial automation equipment. They are widely used in the connection of PLC control systems, sensors, actuators, control cabinets and other equipment. M12 connectors can provide stable electrical connections in harsh environments, support high-speed data transmission, and withstand vibration, temperature changes and humidity. Its compact design is also very suitable for industrial environments with small spaces.
● Sensor Network: m12 female connector is widely used in sensor networks, especially for data transmission of sensors such as temperature, humidity, pressure, and position. Through the m12 female connector, the sensor can make a stable electrical connection with the control system or data acquisition equipment. The sealing design and anti-interference performance of the M12 connector enable it to work stably in harsh environments, and is suitable for a variety of sensor network applications such as automobiles, factories, and climate monitoring.
● Robotics and automation control: In the field of industrial robots and automation control, the reliability and durability of the M12 female connector are very important. M12 connectors are widely used for power, signal and data transmission in robot control systems. They can ensure the stable transmission of control signals and power signals, thereby improving the operating efficiency of automated production lines.
● Network equipment and communication: M12 connectors are also used in network communication equipment, especially between devices that require high-frequency signal transmission and data exchange. They are often used in switches, routers, network interface cards and other equipment to provide stable electrical connections and ensure stable signal transmission. M12 connectors can effectively prevent electromagnetic interference and ensure stable transmission of high-speed signals.
